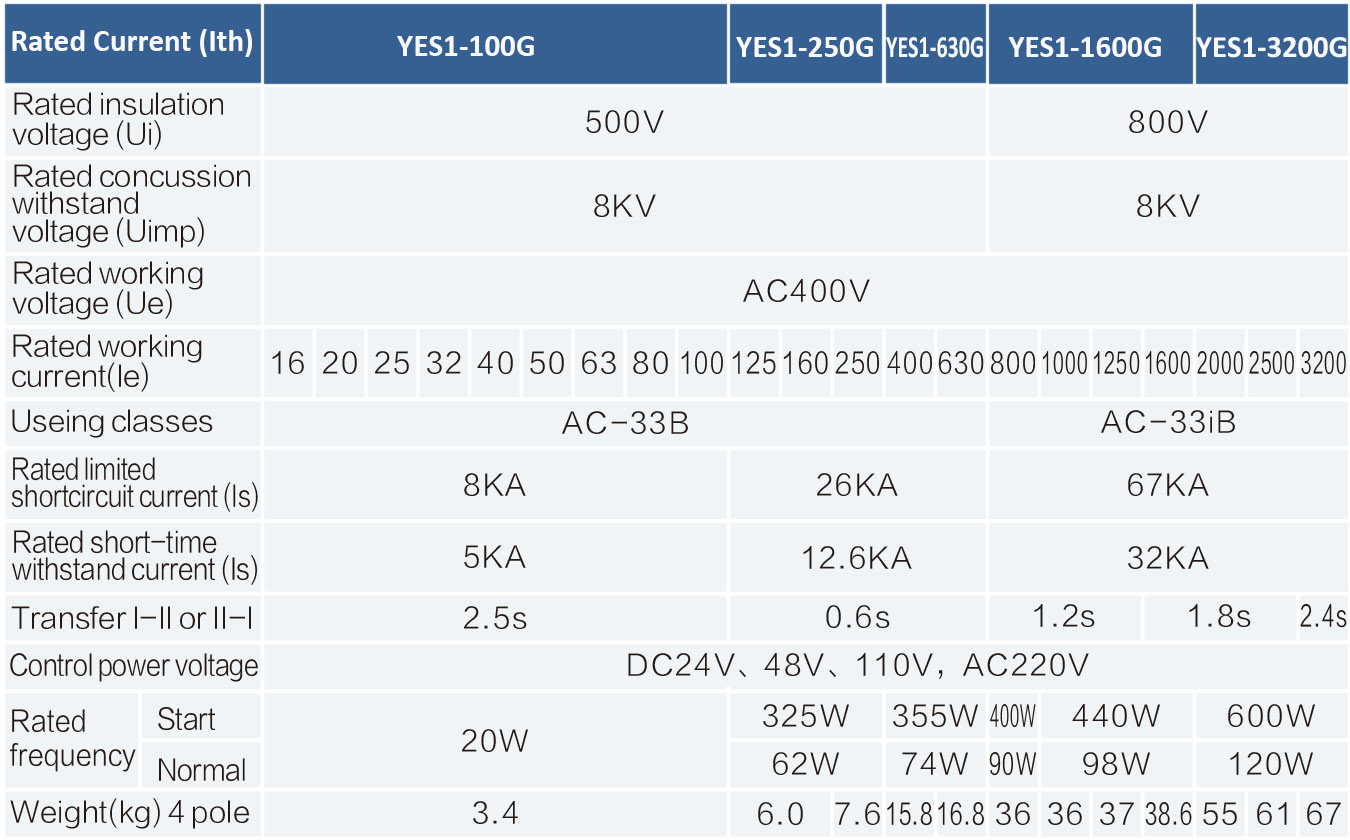

Note: The weight in the table are for reference only.

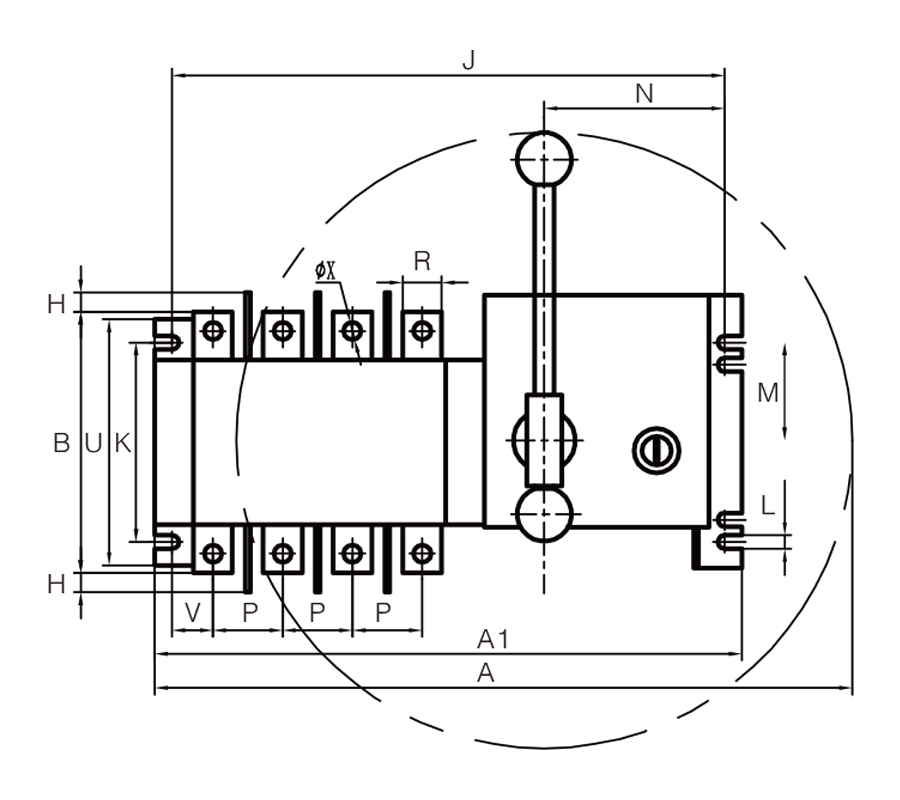

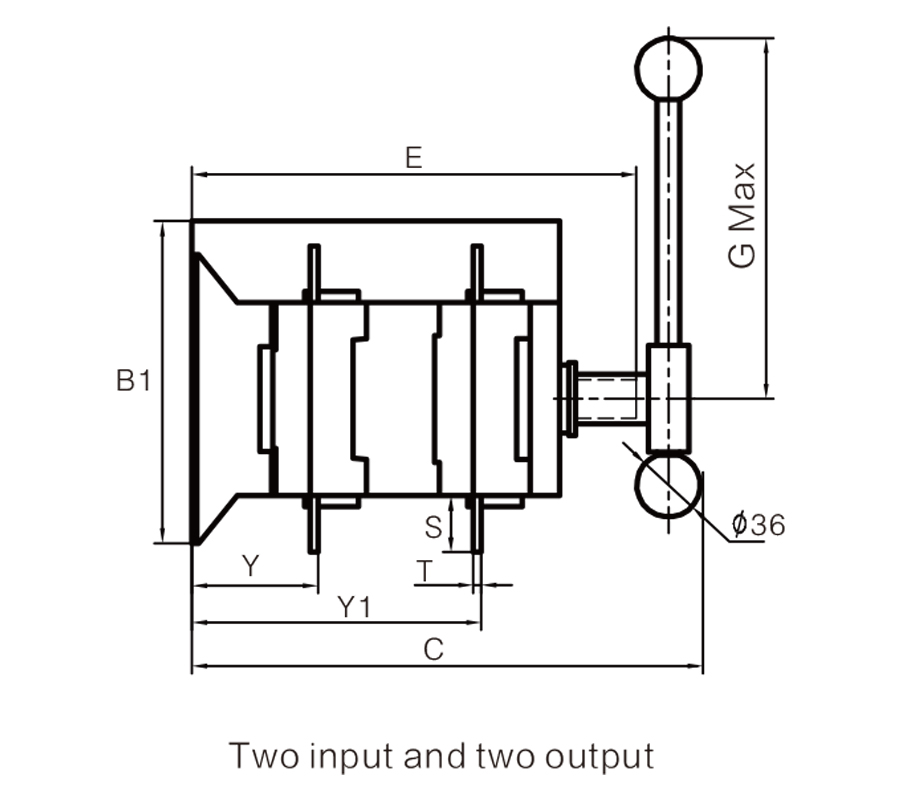

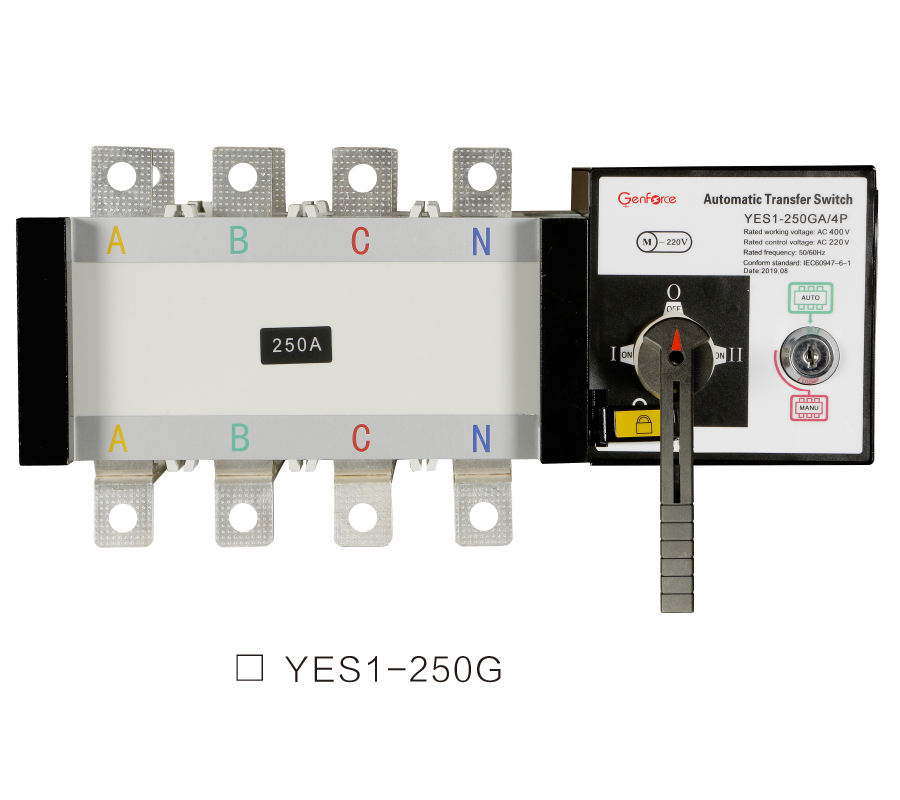

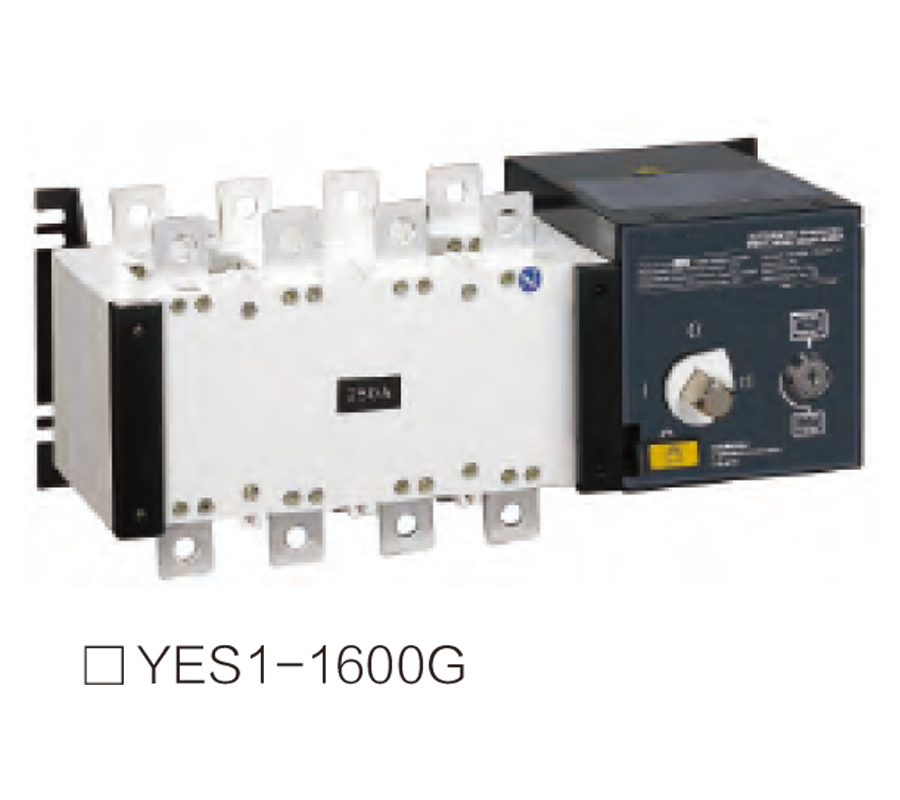

Outline and installation dimension drawing(16A~1600A)

Specification	Total size								Switch installation												Connection termina
Specification	A	A1	B	B1	C	E	G	H	J	K	L	M	N	P	R	S	S1	T	T1	U	V	φX	Y	Y1	Y2
16~100A Two input and one output	270	245	110	103	170	142	115	/	226	84	7	44	81	30	14	18	23	2.5	5	103	12	6	40.5	92	67.5
16~100A Two input and two output	270	245	110	103	170	142	115	19	226	84	7	44	81	30	14	18	/	2.5	/	103	12	6	40.5	92	/
125~160A	383	305	135	135	224	190	145	10	283	102	7	49	91	36	20	25	/	3.5	/	127.5	19	9	56	127.5	/
250A	411	368	159	142	224	190	145	6	347	102	7	49	91	50	25	29	/	3.5	/	141.5	28	11	56	130	/
400A/3P	530	372	234	222	305	268	245	20	354	179	9	96	91	65	32	37	/	5	/	222	38	11	82.5	192.5	/
400A/4P	590	435	234	222	305	268	245	20	414	179	9	96	91	65	32	37	/	5	/	222	38	11	82.5	192.5	/
630A/3P	525	374	250	222	305	268	245	20	354	179	9	96	91	65	40	45	/	6	/	222	38	12	83	193	/
630A/4P	590	435	250	222	305	268	245	20	414	179	9	96	91	65	40	45	/	6	/	222	38	12	83	193	/
800~1000A/3P	785	520	328	250	390	326	360	16	496	220	11	115	84	120	60	64	/	8	/	250	61.5	13	109	254	/
800~1000A/4P	1080	635	328	250	390	326	540	16	610	220	11	115	84	120	60	64	/	8	/	250	61	13	109	254	/
1250A/3P	785	520	336	250	390	326	360	20	496	220	11	115	84	120	80	68	/	8	/	250	61.5	13	109	254	/
1250A/4P	1080	634	336	250	390	326	540	20	610	220	11	115	84	120	80	68	/	8	/	250	60	13	109	254	/
1600A/3P	785	520	336	250	390	326	360	20	496	220	11	115	84	120	80	68	/	10	/	250	61.5	13	110	255	/
1600A/4P	1080	634	336	250	390	326	540	20	610	220	11	115	84	120	80	68	/	10	/	250	60	13	110	255	/

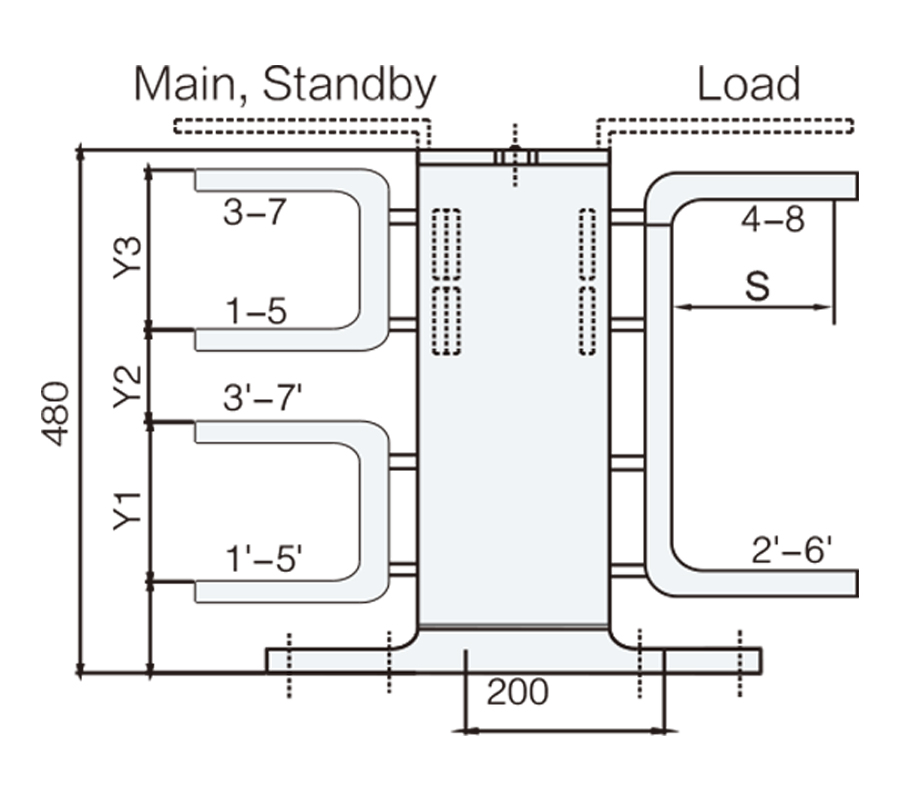

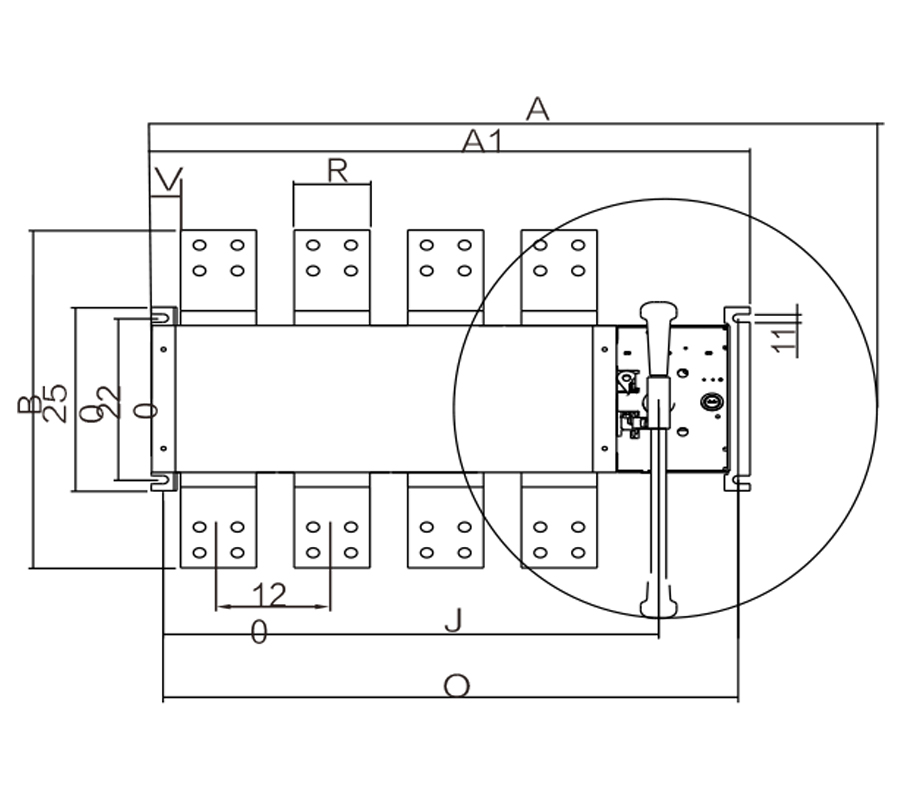

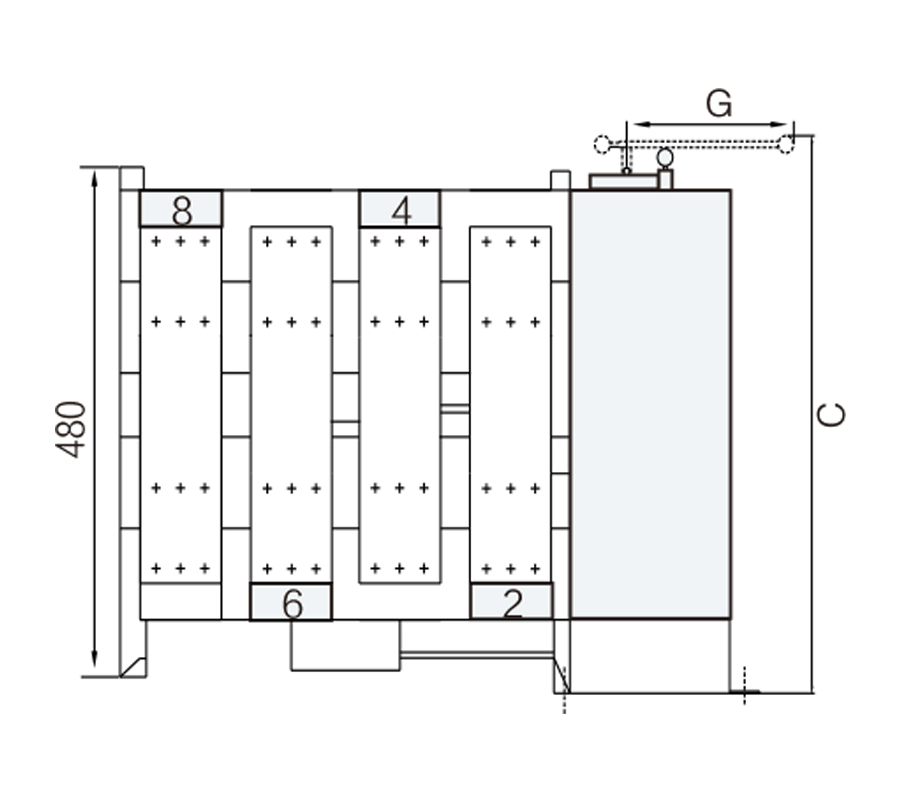

2000A~3200A Outline and installation dimension(Two input and one output)

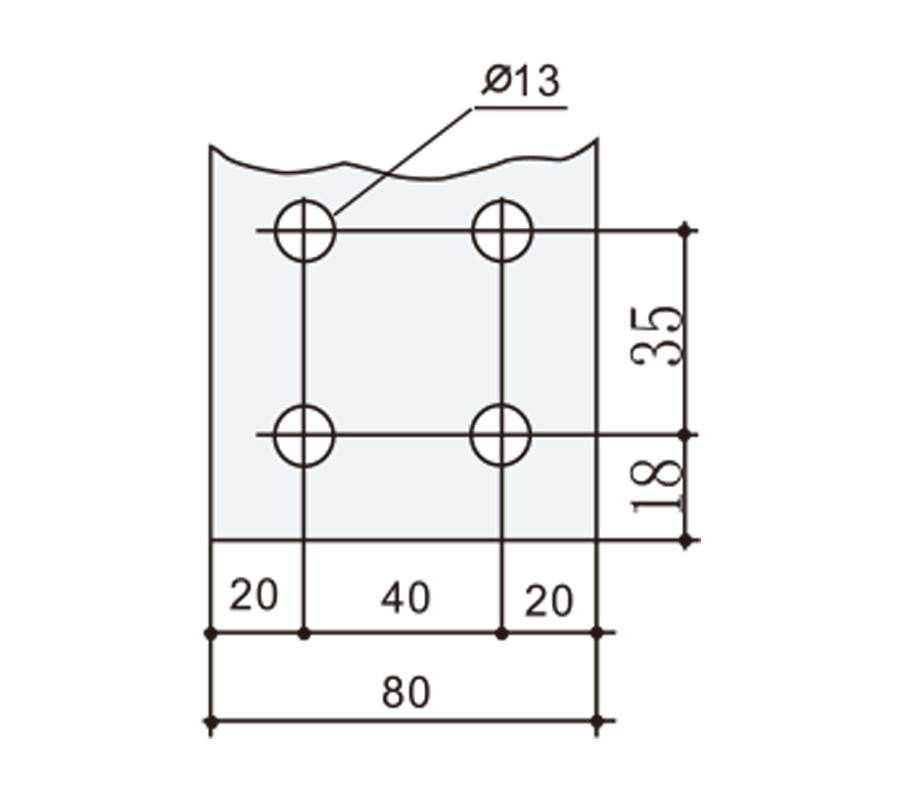

The Load busbar of two input and two output switch are same as Main power busbar and Standby power busbar.

2000A~320 0A

2000A~3200A

Specification	A	A1	B	C	G	J	O	R	S	T	V	Y1	Y2	Y3
2000A/3P	785	535	423	560	360	408	490	80	81	10	30	113	121	113
2000A/4P	1080	650	423	560	540	523	605	80	81	10	30	113	121	113
2500A/3P	785	535	433	560	360	408	490	80	81	15	30	118	116	118
2000A/4P	1080	650	433	560	540	523	605	80	81	15	30	118	116	118
2500A/3P	785	535	443	560	360	408	490	80	81	20	30	118	111	123
2000A/4P	1080	650	443	560	540	523	605	80	81	20	30	123	111	123
